XDEM Truck Mounted Diesel Engine Concrete Mixer and Pump
XDEM V8 Truck Mounted Concrete Mixing Pump Diesel Engine Concrete Mixer with Pump Portable
Product Description:
• It is a machine with perfect combination of mixing and pumping .
• Work with high efficiency mixing and pumping concrete 25-30m3/h,and mix well to achieve a higher quality concrete,and with hydraulic support leg easy to fix and clean.
• With diesel generator, it can use diesel to generate electricity to solve the problem of some place lack of electricity.
• Easy to operation, reducing labor intensity and save labor cost.
• Easy to transition, using special purpose chassis specially developed for rural market, even narrow country road can be easily passed.
• Widely applied to concrete construction of buildings, highways, roads, bridges, dams and slope protections.
Product Specification:
1) imported hydraulic pump, powerful, stable performance ;
2) Siemens and Schneider brand electric control system, quality assurance.
3)pumping vertical distance 70meters
4)pumping horizontal distance 200meteres
Product Feature:
1) Better stability
The pump adopts Kawasaki hydraulic pump and import group valve to better stability and longer service life.
2)Strong transfer capability
With Dia.200mm transfer pipe, the pump can transfer more concrete and deal with aggregate diameter in 40mm.
3)Lager hopper
With 0.65m3 hopper, the dump can be high capability and less surplus.
4)High efficiency
Main Parameters:
| Item Name | Model | V8 |
| Actual output | m3/h | 25 |
| Theoretical output | m3/h | 30 |
| Max pressure on concrete | Mpa | 8 |
| The type of distribution valve | | S tube valve |
| Delivery cylinder | mm | 200 |
| Oil tank capacity | L | 170 |
| Outlet opening diameter | mm | 180 |
| Inner dia of delivery pipe | mm | 125 |
| Power | KW | 30+5.5+18.5+0.55=54.55 |
| Max diameter of aggregates | mm | 40 |
| Maximum delivery horizontal distance | m | 200 |
| Maximum delivery Vertical distance | m | 70 |
| Capacity of charge hopper | L | 500 |
| Capacity of discharge hopper | L | 650 |
| Diameter of drum | mm | 1440 |
| Drum rotary speed | r/m | 15 |
| Mixing time | s | 15 |
| Dimension | mm | 6800*2200*3250 |
| Weight | kg | 12000 |
| Quantity in 20ft container | set | 1 |
Basic Configuration
| Generator sets | Power:120kw WEICHAI engine |
| Concrete mixer | Model: JS500, Mixer Volume:500L |
| Concrete Pumping system | Hydraulic pump: Kawasaki brand transport capacity: 30 M³/h |
| Substructure | Hydraulic support leg |
| Central Electric Control system | Three ways: Wired, Unwired and control board |
| Pipe (option) | Length: 100m |

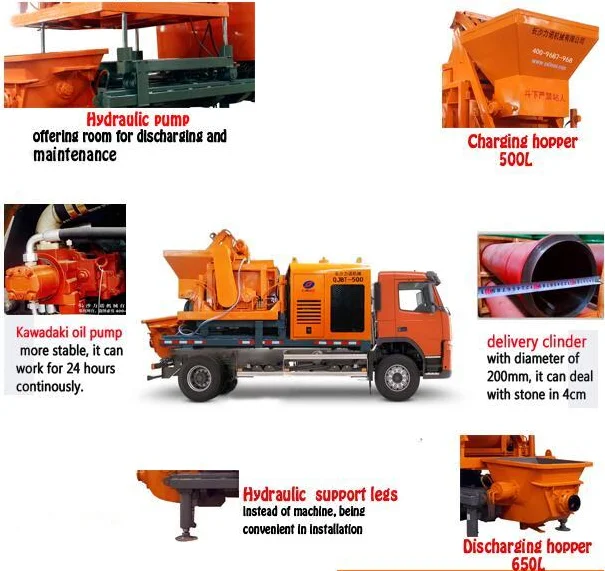

Reference Pictures:
